Giantz 60Amp Inverter Welder Plasma Cutter Gas DC iGBT Welding Machine Portable

The Giantz Plasma Cutter offers professional quality plasma welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth finish. The machine delivers a high temperature plasma stream that effortlessly cuts through all electrically conductive materials such as steel, cast iron, stainless steel, copper and brass. Fact is, what you get is powerful, fast and accurate cutting with touch HF contact start function that enables the torch tip to be placed directly on the work piece throughout the cutting process. The output current is adjustable between 20A and 60A to produce flawless results with a wide range of applications including sheet metal fabrication, site work, automotive repairs and other repair and maintenance works. Plus, the advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better performance and durability. Not least, safety is never taken for granted as the plasma cutter is protected from overloading current, overheating and over/under voltage situations It also complies with current Australian standards and is SAA, EMC, CE and C-Tick certified.

NOTE: This item comes with a 15A plug and requires a current converter adaptor for use with 10A sockets. Features:

Compact and lightweight

HF contact start technology

Outstanding duty cycle

Super stable arc force

IGBT inverter technology

Super stable DC inverter technology

Current stablisation and auto increase

Industry-standard DIN sockets

Adjustable output current range 20A to 60A

Outstanding 30,000 MTPF hours cooling

Overheating, over current, and over/under voltage protection

SAA, EMC, CE and C-Tick certified

Specifications:

Power Voltage: Single Phase 220-240V ±15%, 50Hz

Power Plug: 15A AU Standard

Output Current Range: 20A – 60A

Efficiency: 85%

Power Factor: COS 0.93

Duty Cycle: 30% @ 60A, 60% @ 40A

Cut Thickness: 1-12mm

Shell Protection Grade: IP21

Power Cord Length: 1.8m

Plasma Torch Length: 4m

Earth Clamp Cable Length: 1.2m

Generator Recommended: 7.5kVA (real power)

Net Weight 6.4kg

Dimensions: 39cm x 17cm x 28.5cm

Colour: Black and red

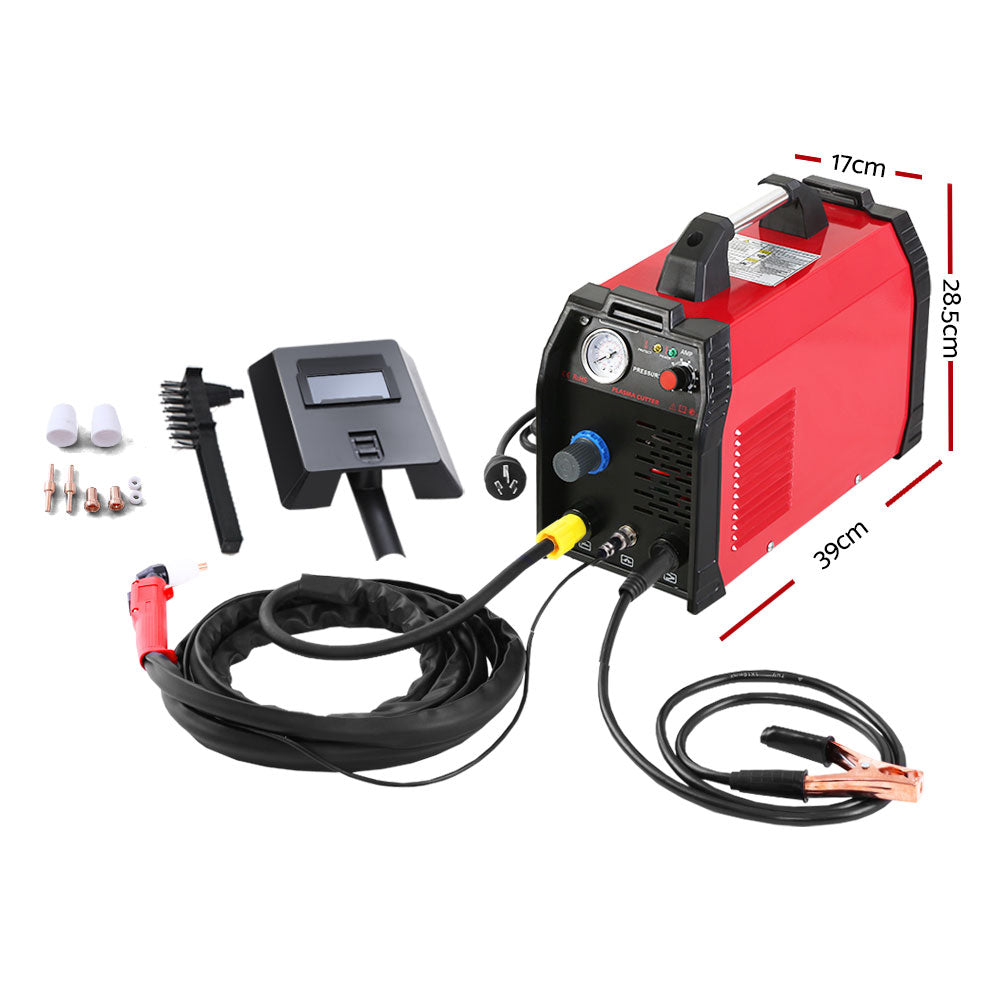

Product Contents:

Giantz plasma cutterx 1

Plasma torch with accessories x 1

Earth Clamp Lead x 1

Welding Mask

Wire Brush x 1

User Manual x 1
